Avipoint™ Bird Spikes

Bird spikes are designed to ensure effective and humane urban bird management solutions for gulls and feral pigeons

Avipoint™ bird management spikes are manufactured in the UK to the highest quality standards. The Avipoint™ “P” series can be used to protect buildings against pigeons in a wide range of situations, from daytime perching to night roosting sites and from the narrowest of pipes to the widest of building ledges.

Spikes are most effective when fitted on exposed areas and for gulls and pigeons call us now.

View product specifications

Available models: AP14, AP20 & AP32

Each product is supplied in a 15 strip stack, sufficient to treat up to 5 metres of ledge.

Glue Grooves enable quick and easy application

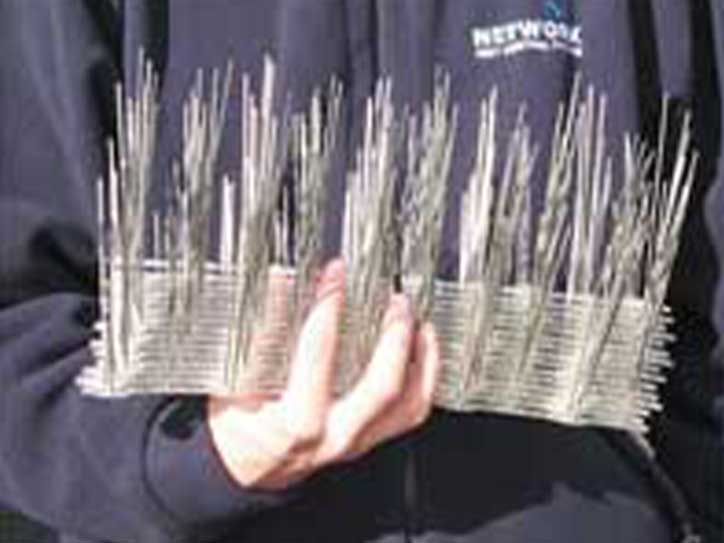

Stackable, Carton lots of 10 stacks or 50 lineal metres

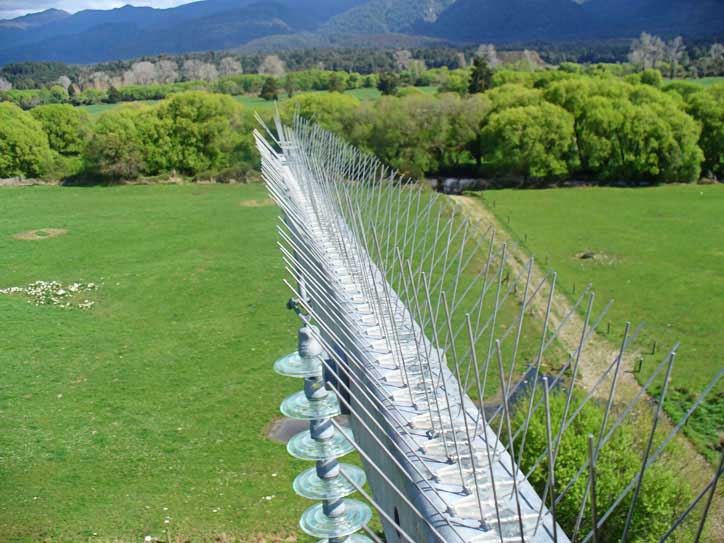

Bird Proofing Transmission Lines

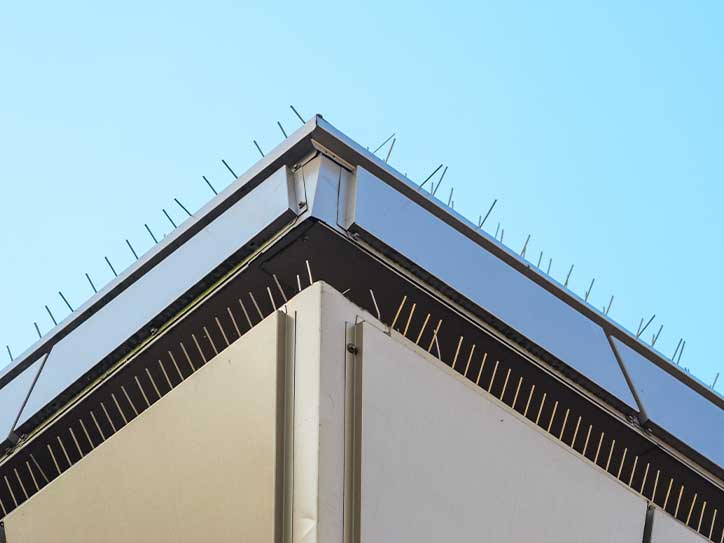

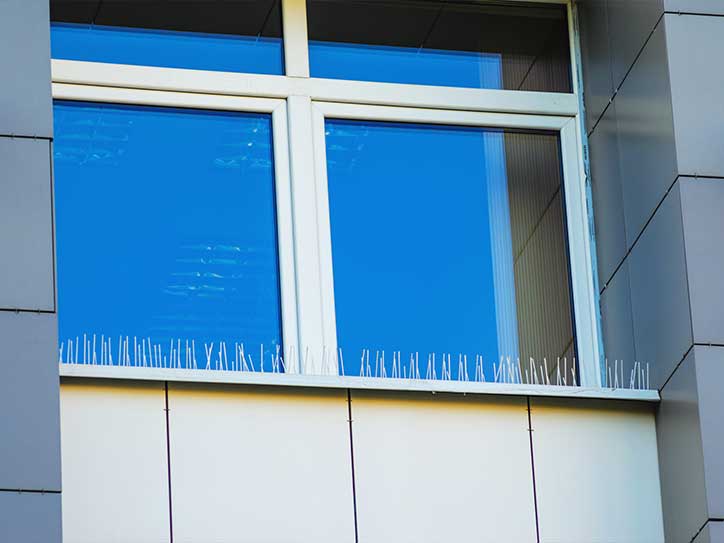

Bird spike installation

Bird spikes should not be used under canopies

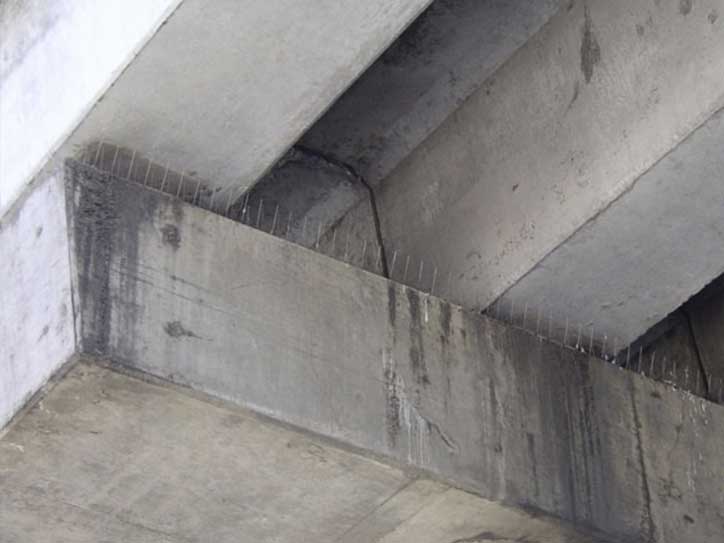

Proofing to top edges of pier

Bird spike installation

Installation of Avipoint Bird Spikes

PREPERATION:

Clean the surface of lichen, slime, atmospheric dirt & bird contamination etc.
Wire brush (then wipe or wash off) the surface being fixed to, if appropriate.
A primer coat of paint will help provide a better key for the adhesive if the integrity of the surface is suspect to you.
Application: When fitted on a ledge or parapet, the bird spike should protrude 5mm past the outer edge of the parapet.
Apply a generous quantity of adhesive, position the spike and press down firmly.
If complete coverage of the surface is required, refer to guidelines for each ‘P’ model.
It is normal to mix & match for different surface widths: refer to photo with P32 on the parapet and sign infill, but P14 on the narrow sign frames.
Faecal defacing of the building
‘Loss control’ for goods production and storage arising from bird contamination
Health risks to staff, bird mite bites, contaminated tools & equipment etc.

GLUE GROOVES ENABLE QUICK AND EASY APPLICATION:

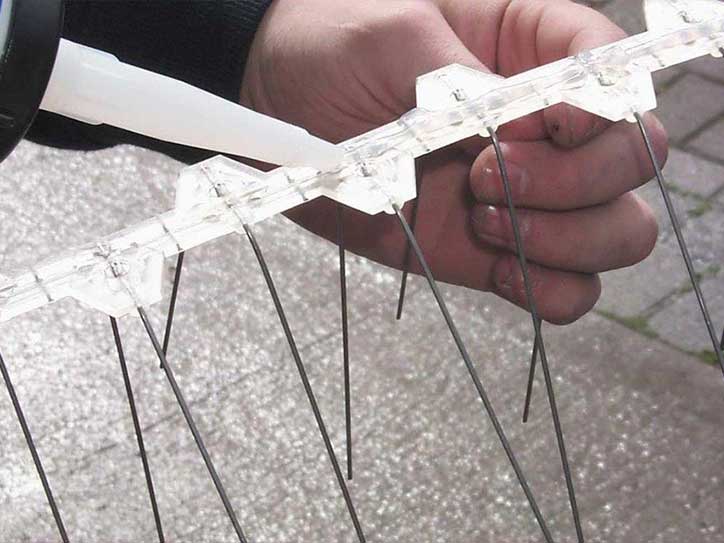

On the underside of the base is a unique”glue groove” which allows the installer to quickly and easily apply adhesive to the base from a caulking gun.
Holes in the groove are designed to allow ‘rivets’ of glue to form, when the strip is pressed onto the surface, to ensure the strip will be securely anchored.
Alternatively, screw or rivet the bird spike base but thoroughly seal the penetration.
Recommended adhesive: a ‘neutral cure’ RTV product suited to the surface being fixed to.

Case Study

Old Magistrates Court

Case Study: Selective Proofing, Old Magistrates Court Earlier attempts to keep pigeons from perching...

ACE Bird Proofing 9 October 2017

Case Study

Gulls and Botulism

Case Study: Gulls and Botulism The problem: Dead seagulls taken from the roof of...

ACE Bird Proofing 11 July 2017

Product Specifications

Available in three models, AP14, AP20 & AP32.
The base is UV light-protected polycarbonate, with breakable sections.
The spikes are a heavy-duty 1.4mm in diameter and are made from 302 grade stainless steel, cut flat to prevent injury to both installers and birds.
These spikes are moulded into the base for improved durability.
Marine grade stainless steel P32 bird spikes are an option.
As a guideline, use P32 (32 wires to 33.3cm piece) for gulls and pigeons

Avipoint™ P14

How to use:

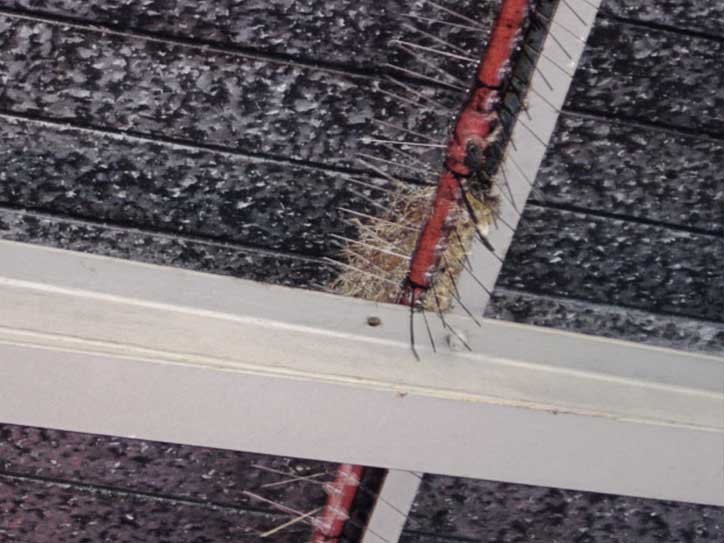

Ideal for use on pipework or narrow ledges as the base is just 20mm wide. On pipework, we recommend glue and cable tying in place. The spike tips are 50mm apart, so will protect an area up to 115 mm wide from one strip.

Bird Activity:
For use where there is daytime perching of pigeons.

Pack Size:

Supplied in stacks of 15 x 33cm strips = 5m.
Each complete carton contains 10 stacks = 50m.

Specifications:

double rows of spikes
product length 33cm
product width 50mm
protects ledge up to 115mm wide
narrow base (20mm)
1.4mm diam. wire
302 grade s/s
150 strips (50m) per carton

Avipoint™ P20

How to use:
With a denser pattern of ‘spikes’ spanning a greater width, this is the ideal product for protecting most building ledges. The spike tips are 140mm apart, so will protect an area up to 205 mm wide from one strip.

Bird Activity:
For use in most situations where pigeons or gulls are perching in the daytime or pigeons are roosting at night.

Pack Size:
Supplied in stacks of 15 x 33cm strips = 5m.
Each complete carton contains 10 stacks = 50m.

Specifications:

10 double rows of spikes
product length 33cm
product width 140mm
protects ledge up to 205mm wide
wider base (50mm)
1.4mm diam. wire
302 grade s/s
150 strips (50m) per carton

Avipoint™ P32

How to use:

With a denser pattern of ‘spikes’ , this is the product of choice in heavily used areas. The spike tips are 200mm apart, so will protect an area up to 265 mm wide from one strip.

Bird Activity:
For use on wide ledges, parapets and areas that are heavily used by pigeons or gulls.

Pack Size:
Supplied in stacks of 15 x 33cm strips = 5m.
Each complete carton contains 10 stacks = 50m.

Specifications:

16 double rows of spikes
product length 33cm
product width 200mm
protects ledge up to 265mm wide
wider base (50mm)
1.4mm diam. wire
302 grade s/s
150 strips (50m) per carton

Specialist Adhesives

Neutral cure RTV adhesives are recommended.
One 290ml tube can install up to 15m of AVIPOINT™.
The selected adhesive needs to suit the substrate bird spikes will be fixed to.
Discuss your adhesive requirements with us

Protect your business or property

Call +64 21 795 280 or email us today for an estimate.
